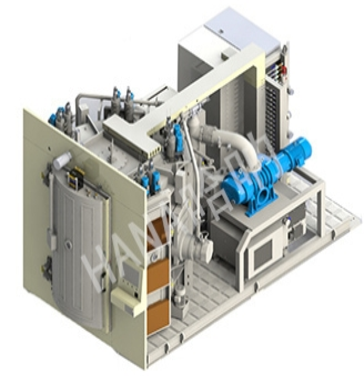

HANA Color Sputtering Coating Machine

Equipment introduction：

HANA Color Sputtering Coating Machine is a multifunctional coating equipment for various accessories in the fields of mobile phones and automobiles, which can coat color films and AR films.This equipment is single door structure with multiple targets installed inside: 4 pairs (8) of targets, which can achieve continuous coating of multiple layers of different materials, and can coat ultra-thick film layer of 500 nanometers or more. (Target quantities can be increased according to customer needs). The jigs inside the chamber are detachable and can rotate at a high speed of over 60 rpm. The rotation speed can be steplessly adjusted by touching screen, and the entire equipment operation status can be visually displayed.

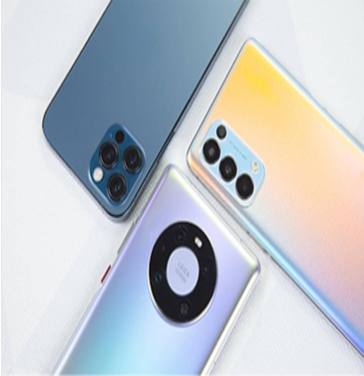

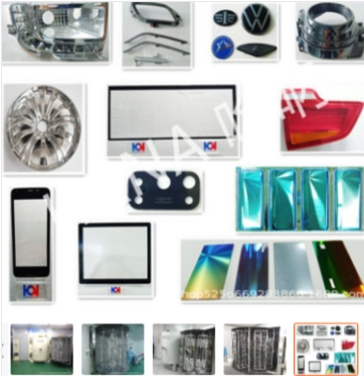

AR film, various color films, mobile phone panels, car panels, mobile phone camera covers, mobile phone color covers, etc.

◆Chamber size：

VSD 1621 (1600*2100) （Size can be customized）
VSD 1821 (1800*2100) （Size can be customized）
VSD 2527 (2500*2700) （Size can be customized）

◆Vacuum system： water vapor cryopump（can reach below -135°）mechanical pump （RP）+Roots pump（MBP）+molecular pump（TMP）
◆Process power supply: medium frequency power supply
◆Control system: imported programmable controller, touch screen;

Stable Sputtering Coating Technology

The company's unique target tube structure design, multi-stage gas path control technology, constant pressure control gas volume, can achieve stable control of magnetron sputtering rate. The use of online real-time monitoring film thickness design ensures the uniformity of the film layer and product consistency.
